Driveway gates, walk gates, ornamental ironwork and gate operators across Elgin, Kane County and the Fox Valley. Built to the opening you actually have, footed below the frost line, and finished for a drive that gets salted every winter.

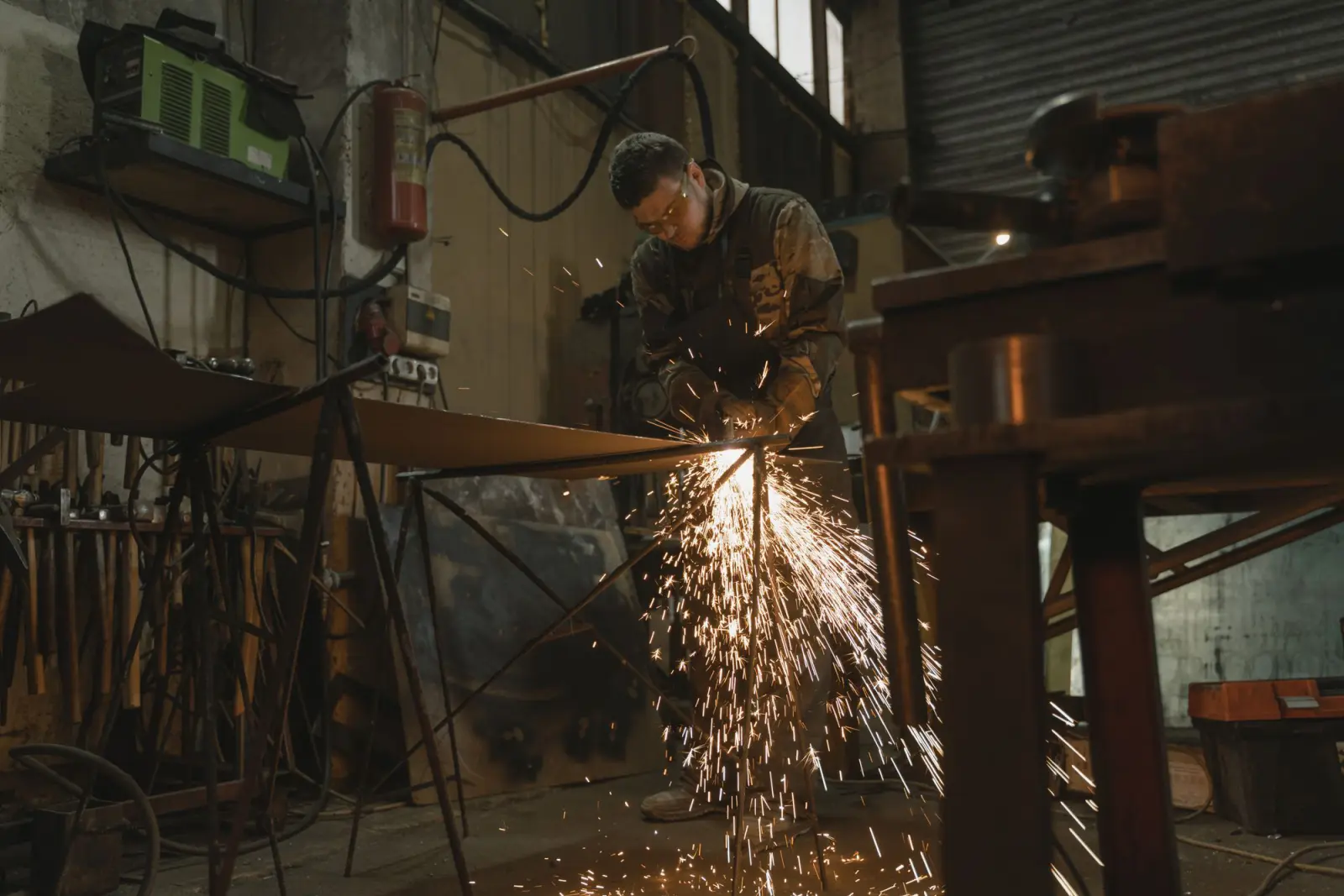

Elgin Elite Metal Gates is your local resource for driveway gates, walk gates, ornamental iron fencing, gate operators and access control throughout Elgin, Kane County and the Fox Valley. We work with experienced fabricators and installers who build to the opening on your property rather than trimming a catalog panel until it more or less fits. From a narrow east-side drive above the Fox River that rules out a swing leaf entirely, to a long west-side approach where the only real question is operator class, every job starts with a measurement taken on site.

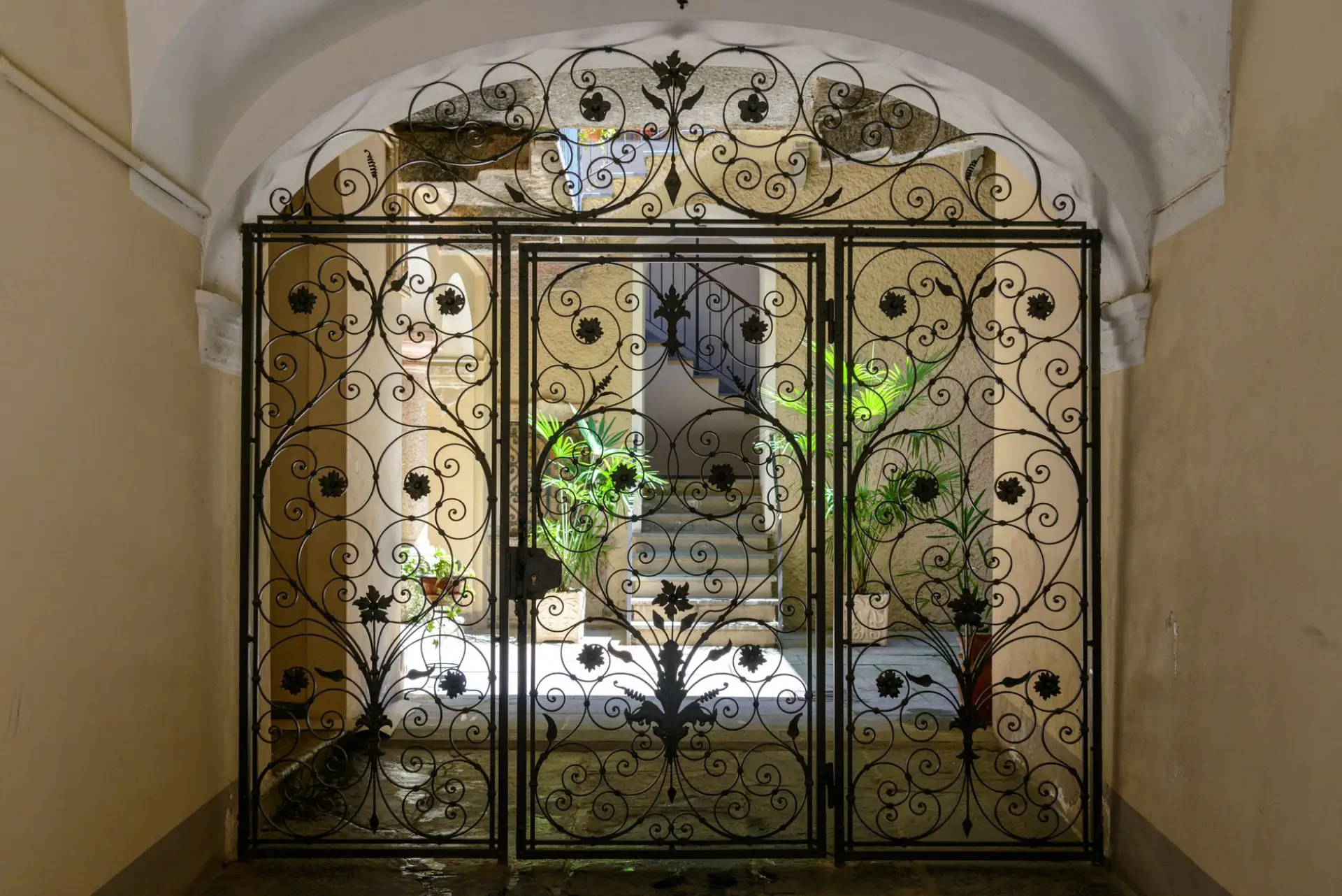

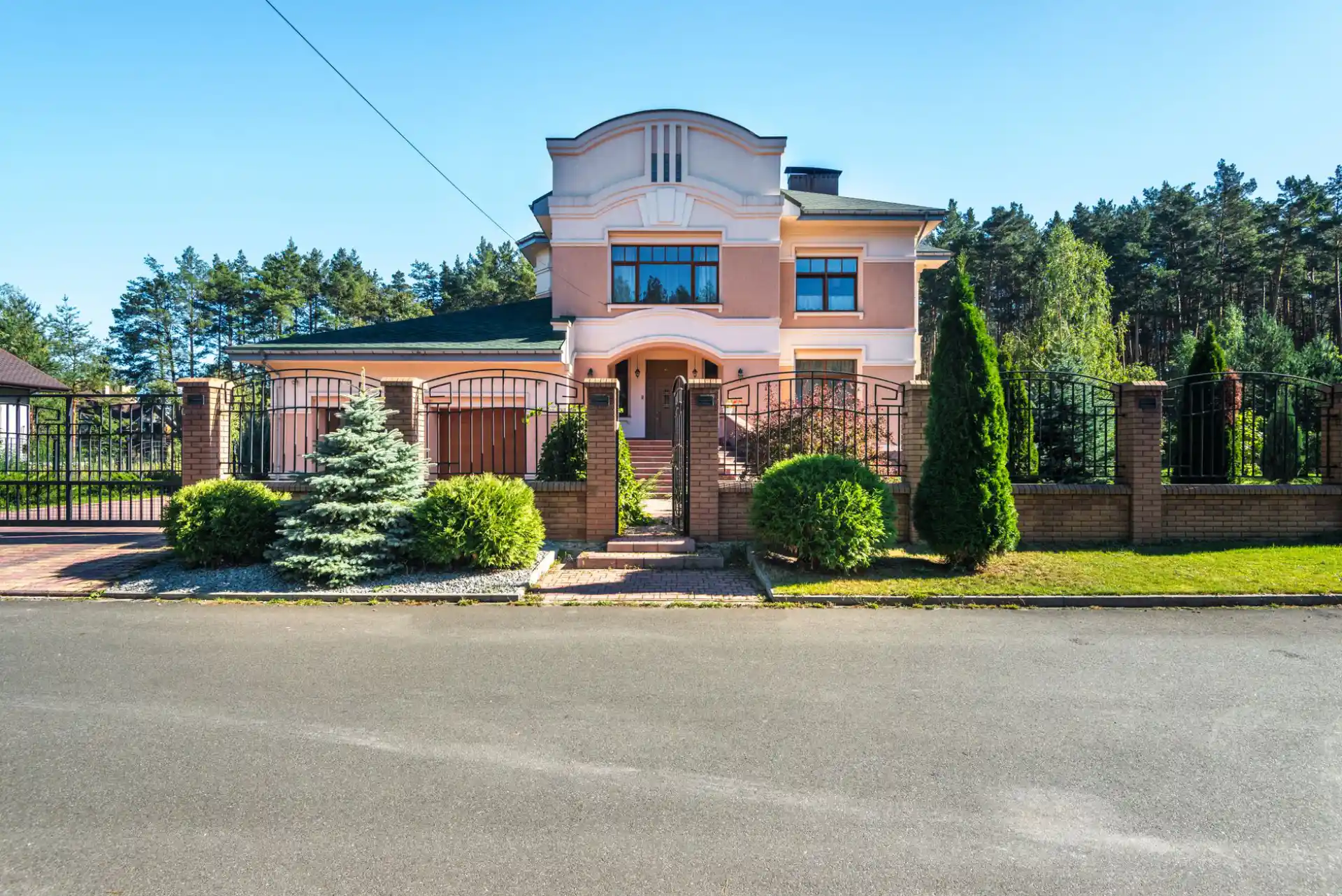

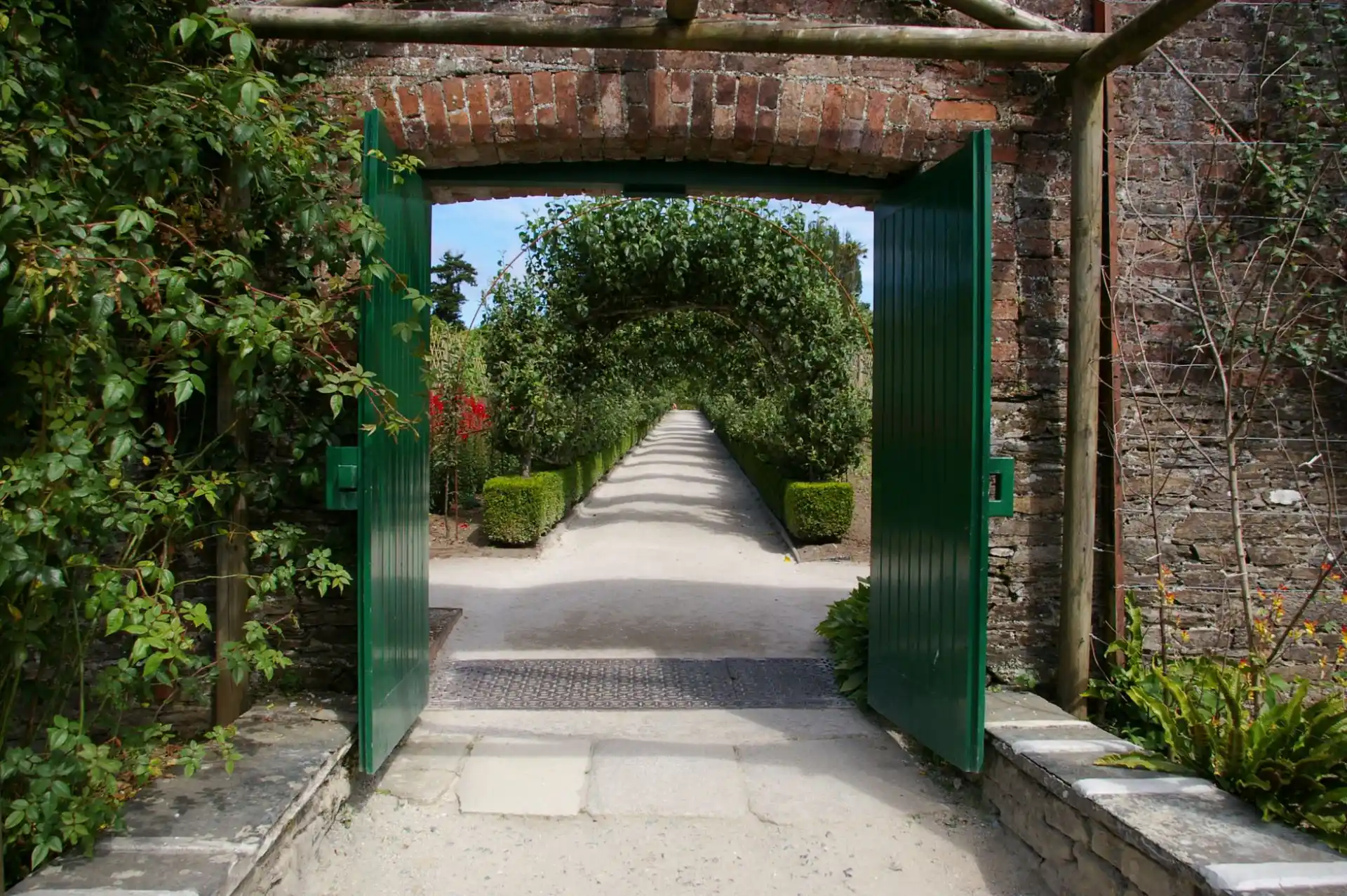

A new driveway entrance, a walk gate that finally latches, an ornamental pair matched to the ironwork already on the property — all need the same thing: a gate cut to the opening that exists, not a stock panel trimmed until it more or less fits.

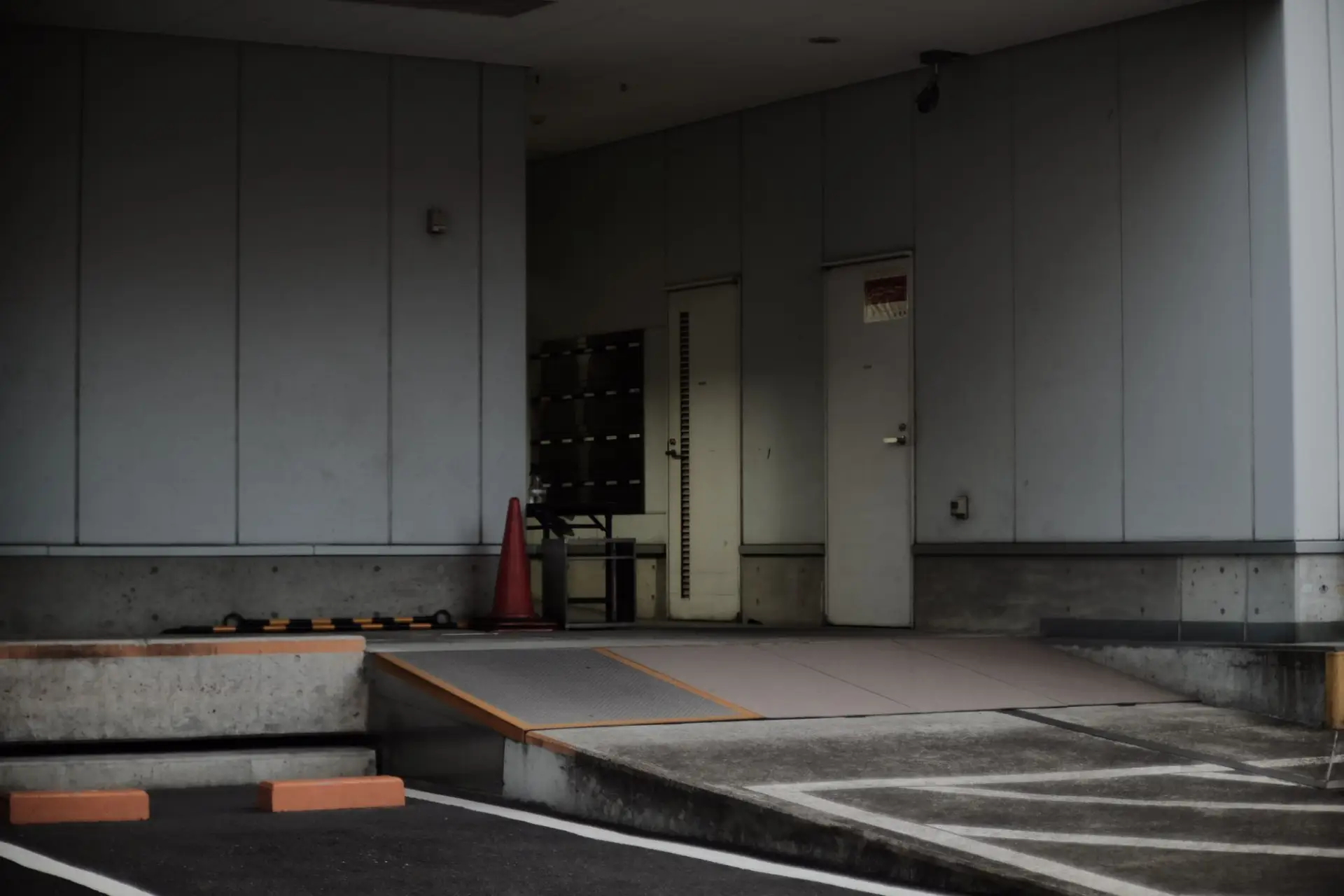

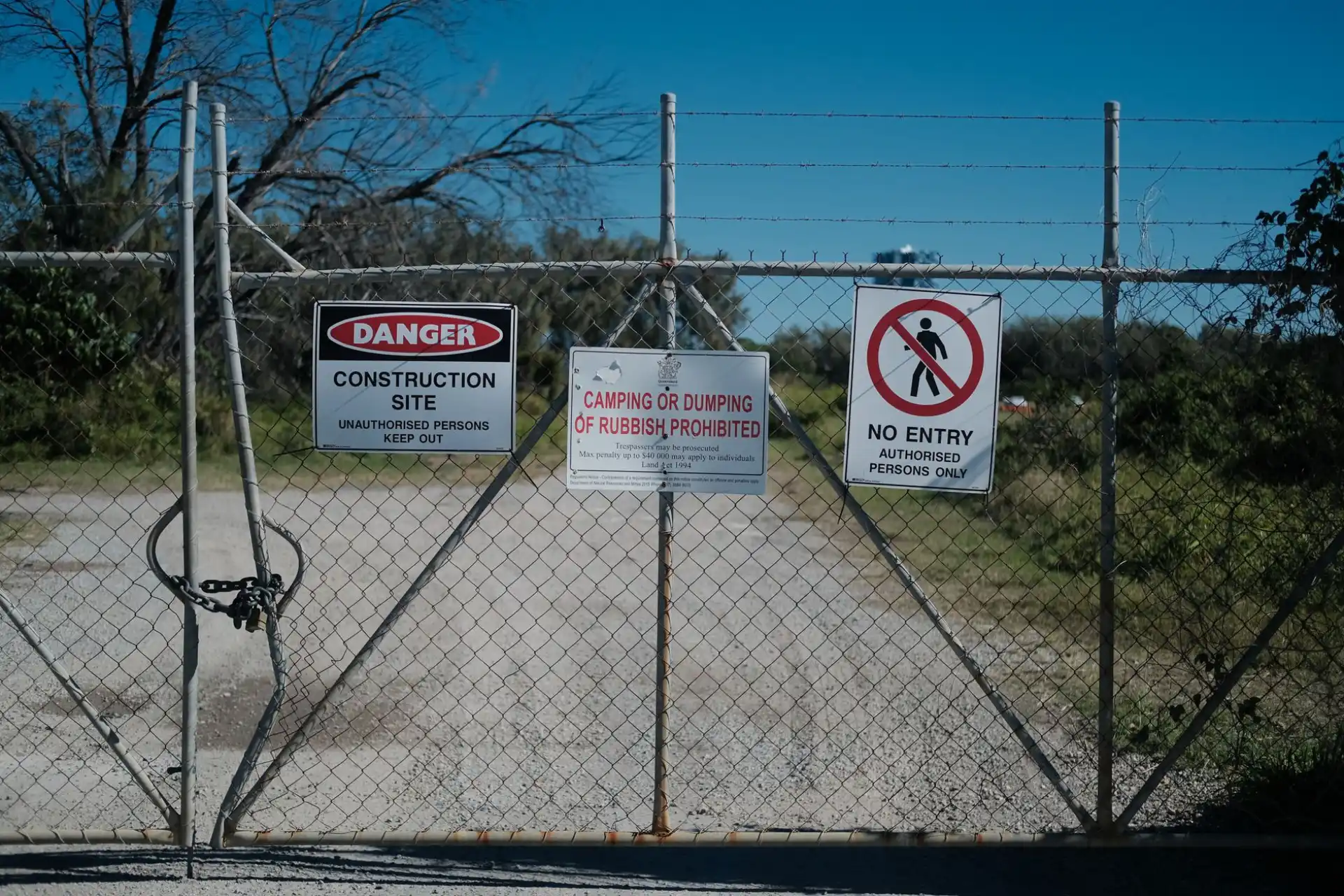

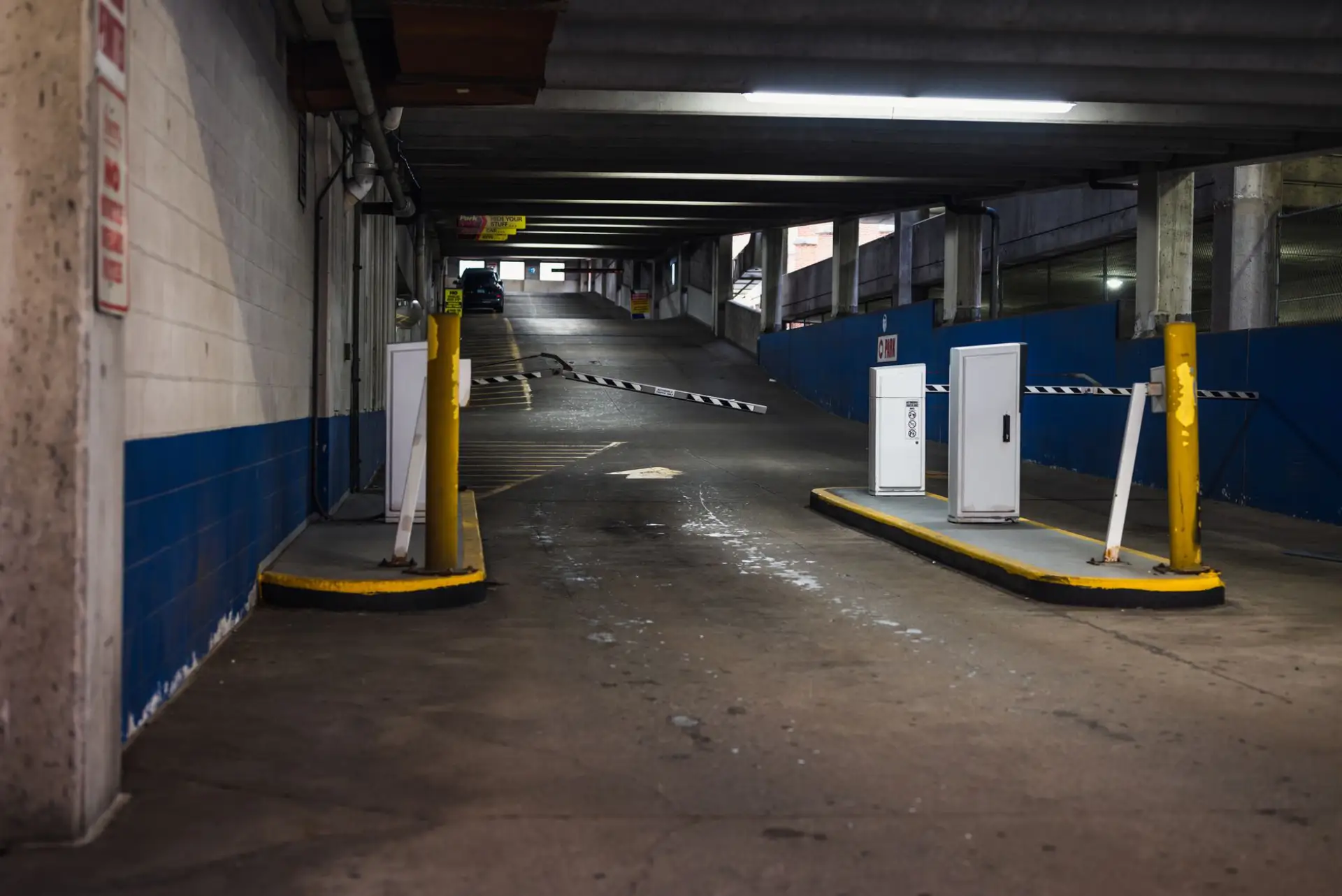

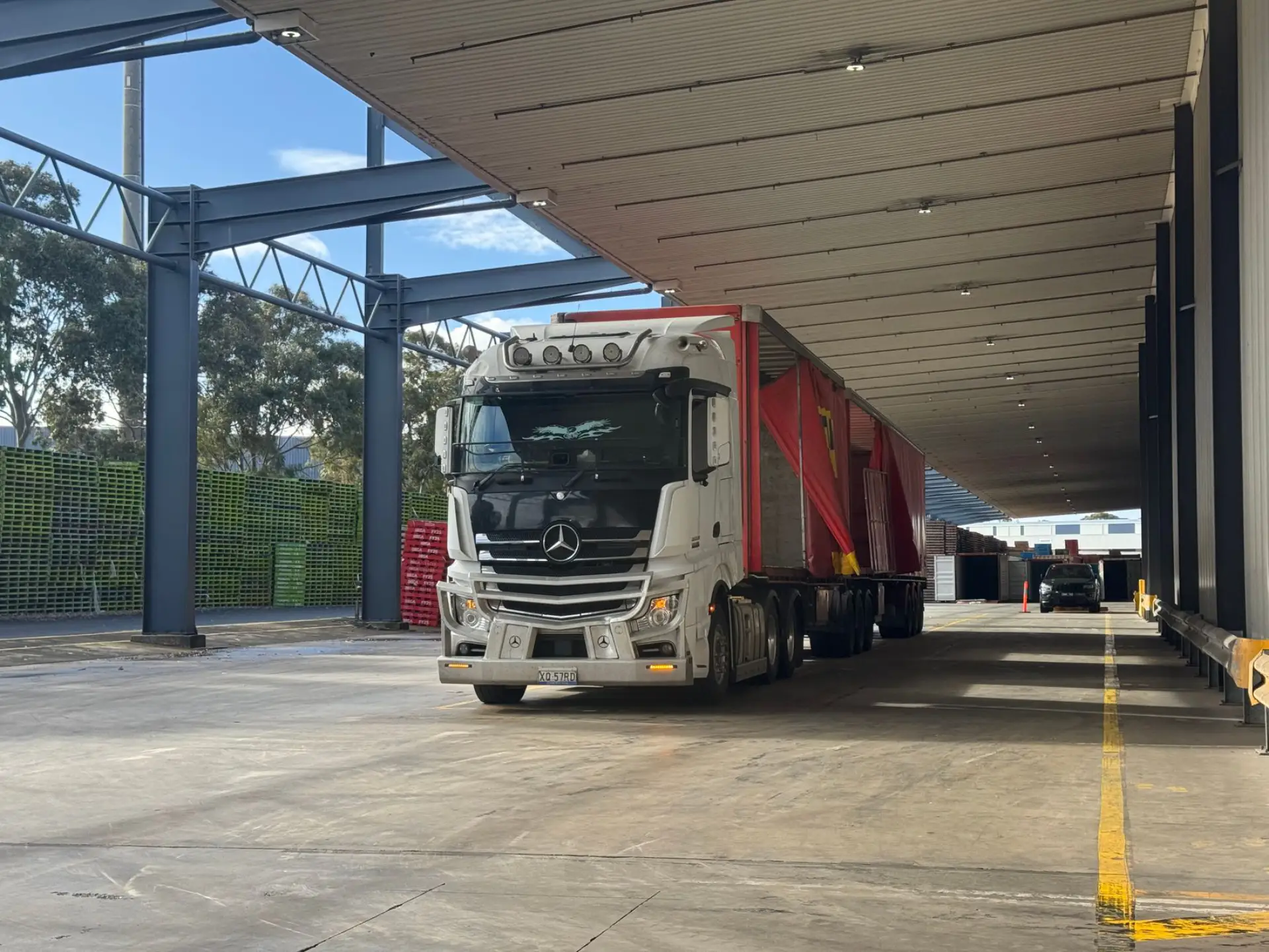

Warehouses, contractor yards, apartment properties and parking structures all need the same thing: hardware specified for the cycle count it will actually see, not for the width of the opening.
Most gate quotes are a rendering and a number. These four specs are what decide whether the gate still meets its latch after ten Fox Valley winters, and all four belong in writing before anyone cuts steel.
Elgin's frost depth is 42 inches. A quote that is vague about how deep the post holes go is vague about the thing most likely to fail first — and a heaved post is a repair that means digging it back out, not adjusting the latch.
Tube wall thickness, picket stock, cast versus forged. A quote that shows only a rendering and a price is a quote you cannot compare against any other quote.
Powder coat straight over mild steel looks identical on handover day. Hot-dip galvanizing underneath it costs more up front and is the reason a gate still looks right after a decade of road salt reaching the bottom rail.

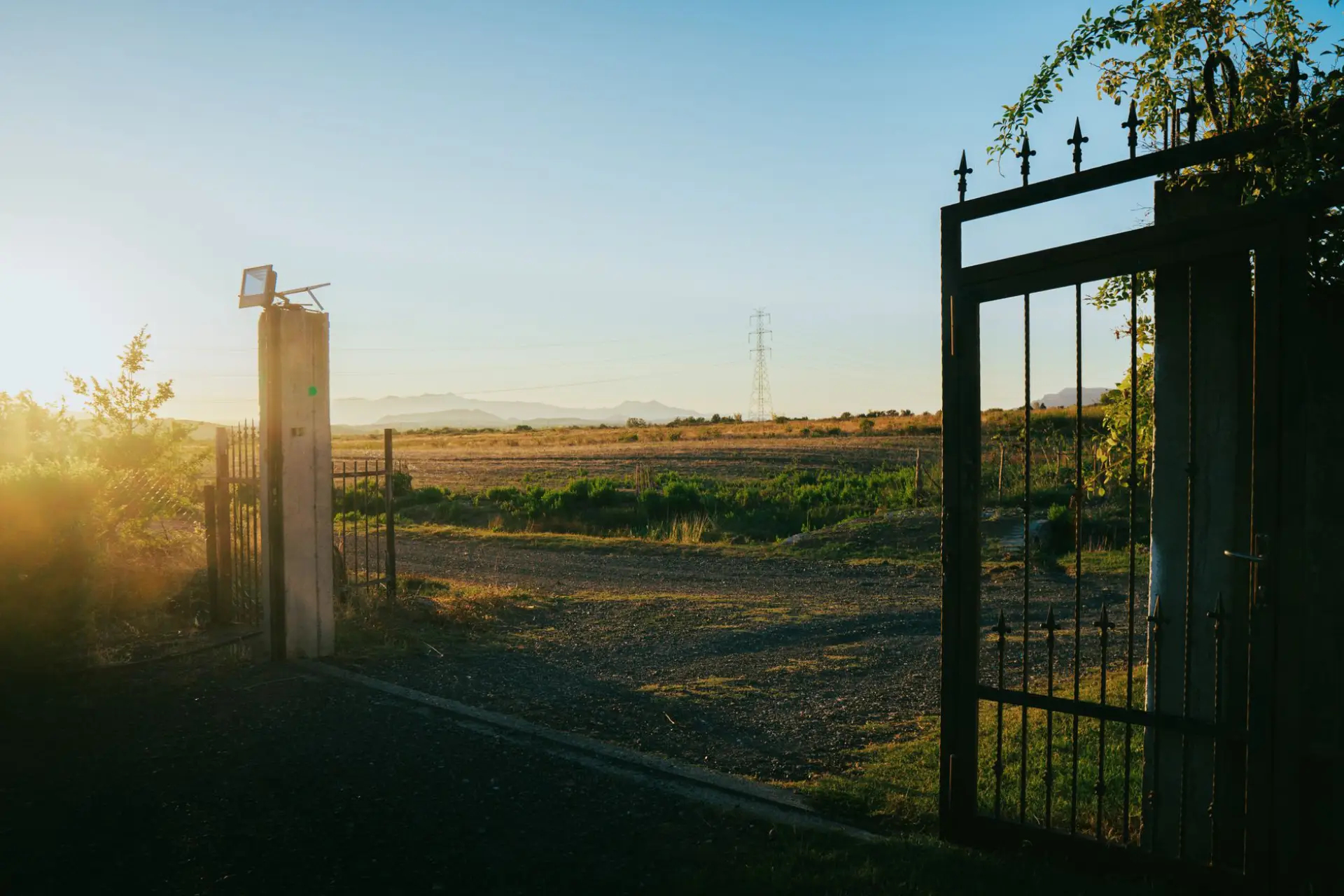

Entrapment protection is part of what a compliant automated installation involves, and operators built from 2016 onward will not run without a monitored device connected. Ask to see the safety devices tested in both directions before handover.
Elgin sits in a 42-inch frost zone. Gate posts carry loads no fence post ever sees, and a footing that terminates inside that zone gets jacked upward a fraction with every freeze-thaw cycle. The symptom arrives slowly — the gate stops meeting its latch, then needs lifting to close. Nothing about the gate has changed. The geometry it hangs in has.

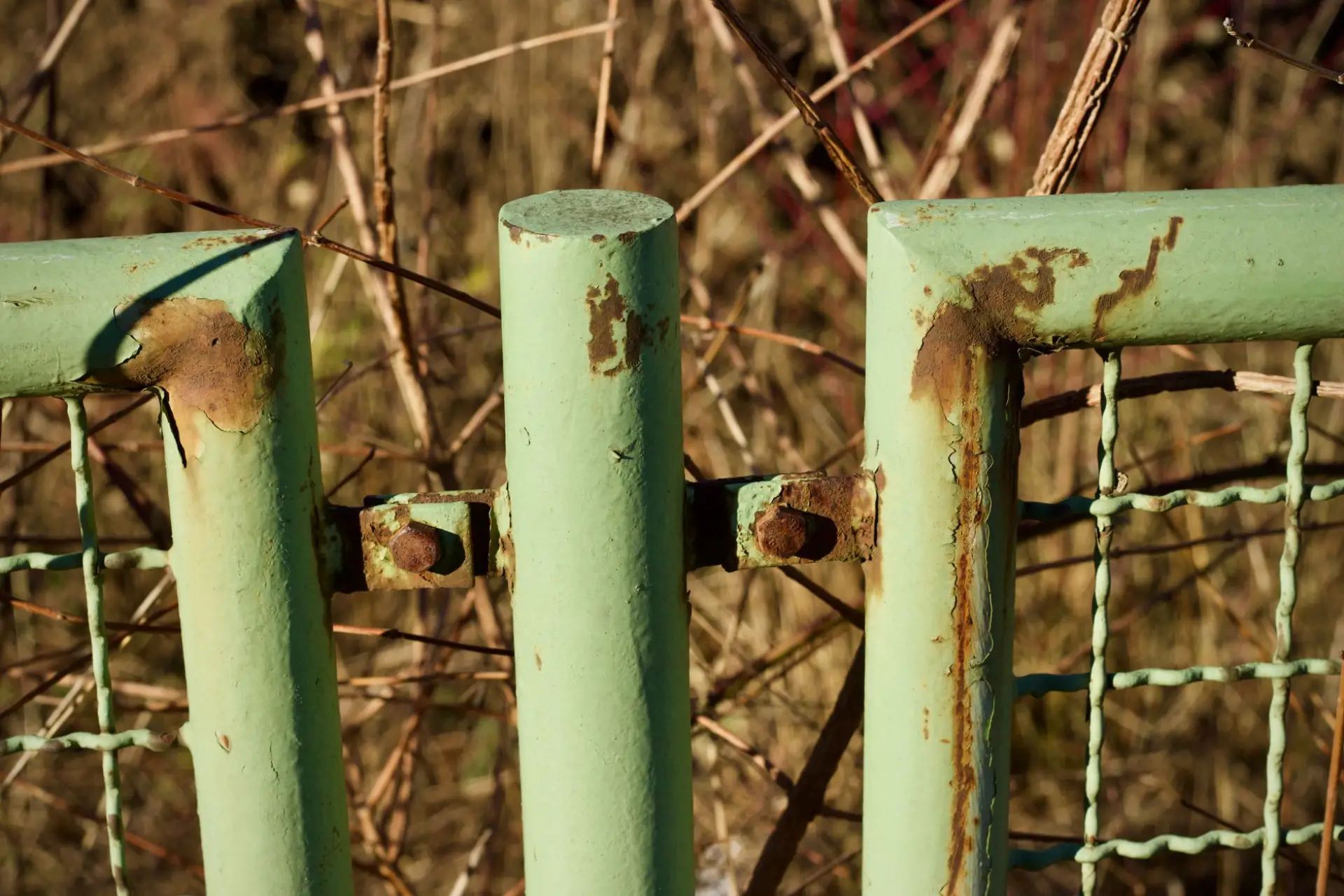

Salt spray off a plowed drive reaches the bottom rail every winter, and it finds bare steel at the weld seams first, because that is exactly where the mill finish was ground away. Hot-dip galvanizing under powder coat is the answer with a mechanism behind it rather than a sales line: the zinc keeps working at the spots where the coating has already been chipped.
Elgin recognizes four local historic districts and 23 landmarks, and exterior work on a property in one needs a Certificate of Appropriateness. For a gate that means the design gets reviewed on pattern, picket spacing and finial style rather than colour alone — and it frequently has to match ironwork already standing on the property or next door.
The opening gets measured, the grade gets checked along the full arc a swing leaf would travel, and the apron gets measured to see whether a waiting car clears the road. Those three numbers decide swing versus slide before style is discussed.
Material, tube wall thickness, picket stock, finish, hinge rating and operator class go in writing next to a design drawing. If automation is even a possibility later, it gets specified now — the frame and hinges are sized differently either way.
A JULIE locate goes in first: free, legally required in Illinois, and a couple of business days, so it usually sets the schedule more than fabrication does. Post holes go below the 42-inch frost depth, and posts cure before any weight is hung on them.
The leaf gets hung, shimmed square and swung through its full travel to confirm it clears the ground everywhere rather than only when closed. On an automated gate, travel limits get set, safety devices get tested in both directions and the manual release gets demonstrated.
Nationally, gate installation runs $879 to $3,811 with an average around $2,318, and adding automation moves that to $2,380 to $8,000 (Angi, 2026). Those are national figures. What actually moves the number in Elgin is how deep the footings go, how far power has to be trenched to reach the gate line, and whether the property needs historic-district review.
| Project | National Range | Common Example |
|---|---|---|
| Manual driveway gate | $300 – $1,200 | Single swing leaf, no power run to the gate line |
| Steel driveway gate | $600 – $4,000 | Gate and hardware, before posts, footings and labor |
| Ornamental iron, automated | $1,200 – $9,500 | $4,000 – $6,000 for a single-car drive with a swing operator and keypad |
| Automatic gate, installed | $2,380 – $8,000 | $4,000 is the national average for a 12-foot automatic double swing |
| Sliding gate | $500 – $5,150 | $500 – $3,000 manual, $1,050 – $5,150 with an operator |

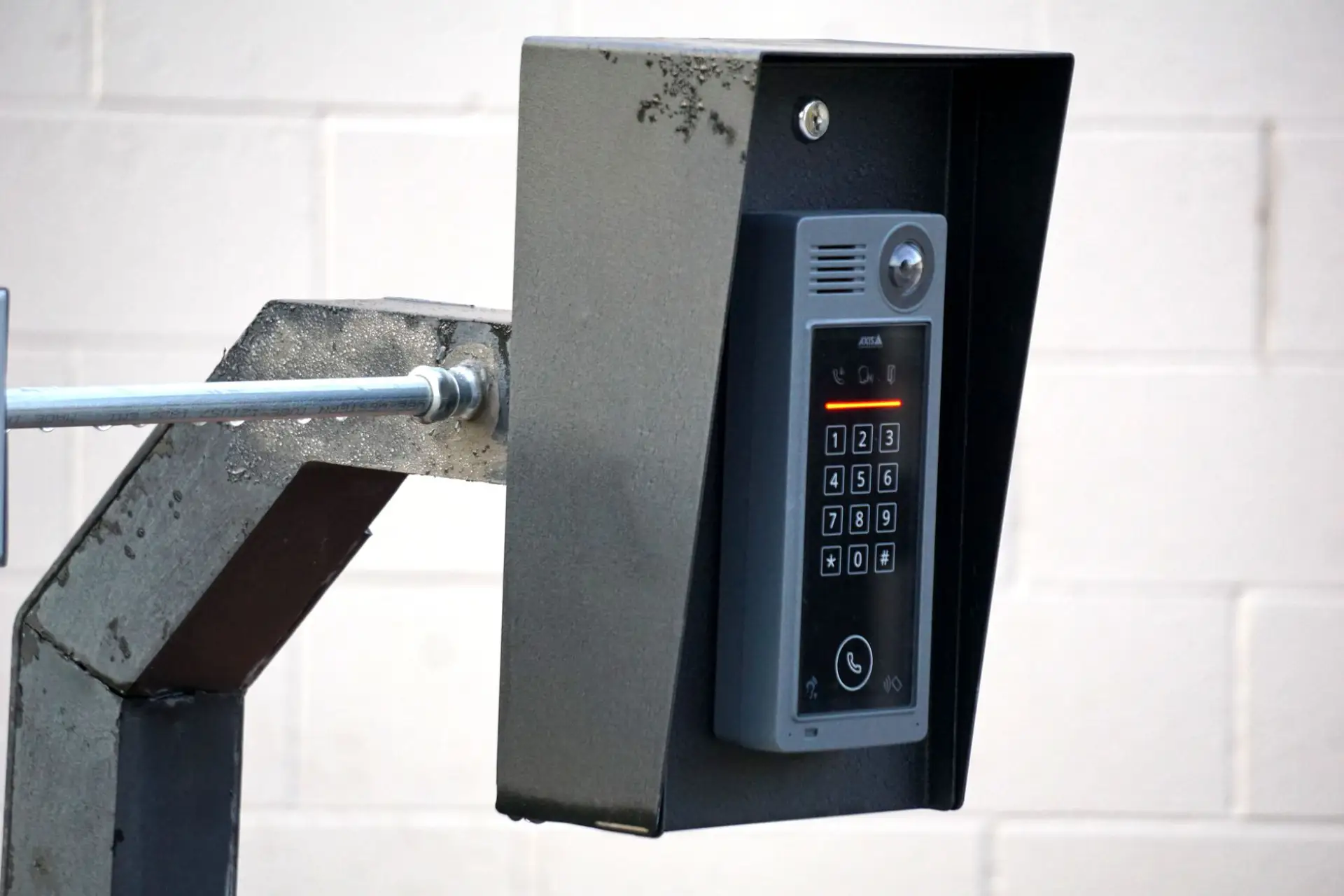

| Intercom or access control | $1,000 – $7,000 | An exit loop or probe adds $250 – $350 |
| Gate or operator repair | $200 – $1,500 | Labor runs $50 – $150 per hour |
National ranges from Angi (2026), HomeGuide (2026) and Fixr (2025) cost guides — not Elgin figures. Three things a national average does not price move the number here more than material choice does: how deep the footings go, how far power has to be trenched to reach the gate line, and whether the property needs historic-district review. A real number comes from an on-site measurement.
Gate work runs across Kane, Cook, DuPage, McHenry & Lake Counties. Each city below has its own page covering that town’s fence and gate ordinance, the footing depth its permit guide requires, and the gate configurations that come up most often there. Listed nearest first, by straight-line miles from Elgin.
